Описание

Особенности и преимущества

Reliability

• Powered by world-famous Cummins engine and reliable alternator,featured with strong power,quick start,easy maintenance and operation,excellent,service with global warranty.
• 40’ft  soundproof and weatherproof container as canopy, the crossbeam of container  is made of square steel tube (different from common container) to enhance  mechanical strength of container and endure higher shock of impulsive-load from  genset.
• All the hinges, locks and screws are stainless steel. Anti wave and  rainproof accessories are fixed inside of the container.
• The equipped high voltage alternator can provide the voltage of 6KV,6.3KV,6.6KV,10KV,10.5KV and 11KV,and also can make other voltage according to customer’s requirement.
• Fuel tank, pipes, oil drain and muffler with special design are  well appreciated by customers.
• High performance soundproof materials are installed inside of  container which are flameproof, durable and especially efficient in noise  reduction.
• Anti-vibration  device,effectively reduce vibration and prevent distortion or harmonics output  of the generator sets.

Safety

• Design,production and test of genset is compliance with CE safety standard
• Equipped with circuit breaker when engine stops in emergency for avoiding possible electric shock risk when re-start.
• Equipped with emergency stop button,can stop the genset immediately when emergent problem happens.
• The controller has a historical operation recording for troubleshooting and inspection.
• Leak fluid collection system for engine is designed at the bottom of  container to avoid the environment pollution

Easy to operate

• Deepsea DSE7320 controller with AMF function,automatical control and protection.
• Connected with the mains through ATS,which can automatically transfer between mains and genset.Meanwhile,multiple gensets can be paralleled for bigger power needs.
• Side doors are fixed in both sides of container for easy  maintenance and inspection. And one ladder is installed in one side.
• Container can be opened from both front and back which is easy for  daily maintenance and inspection of alternator and engine radiator.
• The open genset also can be easily removed from front or back side  for overhaul.
• Two flameproof lights are fixed inside of container, and one in  control panel for easy maintenance and inspection.
• Control panel and switch cabinet are installed on same side of the container  for easy operating and wires connecting.
• Container with CSC certificate which is conformed to international  safety agreement of container. The complete containerized genset can be shipped  directly for sea transportation which saves freight cost.

Environmentally friendly

The noise level can be reduced by 15-35 dB(A) through noise control design,which ensure quiet operations,so having no effect on daily activities.This feature makes our diesel generators ideal for use at night in residential areas,offices and other environments which are to noise.

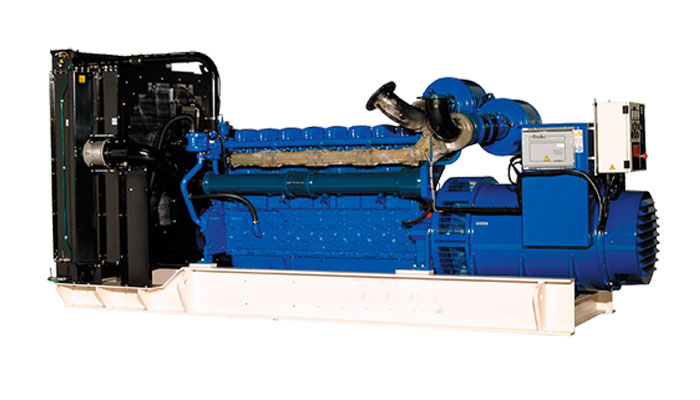

Open Type

Features

• Powered by world-famous Cummins engine and reliable alternator,featured with strong power,quick start,easy mainte nance and operation,excellent service with global warranty.
• Anti-vibration device,effectively reduce vibration and prevent distortion or harmonics output of the generator sets.
• Equipped with circuit breaker when engine stops in emergency for avoiding possible electric shock risk when re-start.
• Deepsea DSE7320 controller with AMF function,automatical control and protection.
• Connected with the mains through ATS,which can automatically transfer between mains and genset.Meanwhile,multiple gensets can be paralleled for bigger power needs.
• Fixed with base fuel tank for at least 8 hours running(As option).
• The lifting eyes located on bottom of genset,make the genset easier to move by forklift or crane.

Система управления

Deepsea brand DSE6020 (Standard)

Features

• Auto start and Auto mains failure control to the genset
• Display of generator cumulated electric energy
• Using microprocessor as a core, graphics LCD with big screen and backlight
• PC and front panel configuration
• Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
• Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
• All parameters use digital modulation, abandoning analog modulation using conventional electronic potentiometer, reliability and stability are increased
• Built-in watch dog can never be dead halt, ensuring smooth program execution
• Analog oil pressure, water  temperature, fuel level, battery  voltage, engine speed
• Generator measurements (50/60 Hz): U1-U3, I1-I3, Hz, kW, kVAr, kWh

Deepsea brand DSE7020 (Standard)

Features

• Auto Mains (Utility) Failure control module
• Remote PC and via SMS textalerts (with external modem)
• LED and LCD alarm indication
• Include USB, RS232 and RS485 ports
• Support for up to three remote display units
• Generator measurements (50/60 Hz): U1-U3, I1-I3, Hz, kW, kVAr, kWh
• Charge alternator failure alarm
• Analog oil pressure, water  temperature, fuel level, battery  voltage, engine speed
• Load switching (load sheddingand dummy load outputs)
• CAN and Magnetic Pick-up/Alt.sensing
• Automatic load transfer

ComAp inteliGen parallel controller (Option)

Features

• AMF function
• Automatic synchronizing and power control (via speed governor or ECU)
• Baseload,Import/Export
• Peak shaving
• Voltage and PF control (AVR)
• Generator measurements: U,I,Hz,kW, kVAr, kWh, kVA,PF
• Mains measurement: U,I,Hz,kW, kVAr, PF
• Interface to remote display unit(IG-Display)
• RS232 / RS485 interface with Modbus support; Analog / GSM / ISDN / CDMA modem support; SMS messages;ECU Modbus interface
• Inputs and outputs configurable for various customer needs
• Event-base history (up to records) with customer-selectable list of stored values;RTC;statistic values
• Integrated PLC programmable functions
• Sealed to IP65
